A unique all-in-one catheter with an extension set and built-in stabilization platform, this BD Nexiva Closed IV Catheter System assists in the reduction of needle stick injury.

• Instaflash Notched Needle Technology
• Material: Vialon Biomaterial.
• Latex-Free.
• 1 Box (20 Pieces)

Product Basic Specification

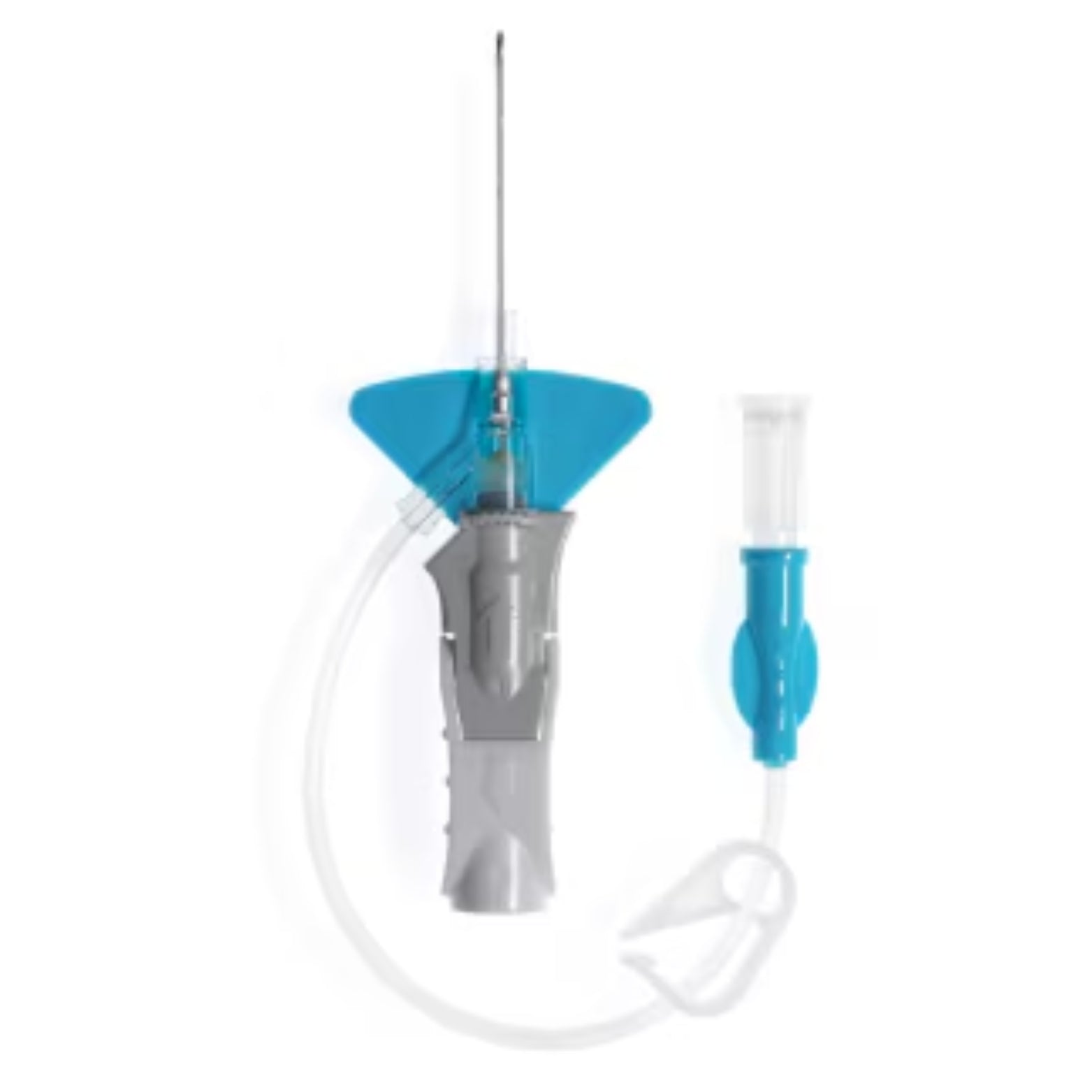

BD Nexiva Closed IV Catheter System – Single Port 22G x 1" | 383512

BD Nexiva Closed IV Catheter System 22G in Canada

The BD Nexiva™ Closed IV Catheter System – Single Port 383512 is an integrated peripheral IV catheter system designed to support intravenous access and infusion procedures. BD describes the Nexiva system as an all-in-one closed peripheral IV catheter designed with the patient and clinician experience in mind.

This specific BD Nexiva 383512 features a 22G catheter with a 1-inch length. The catheter length is 25mm, with a 0.67mm inner diameter and 0.90mm outer diameter. BD lists a gravity flow rate of 33mL/min and a high-pressure rating of 300 psi.

The system incorporates features designed to support catheter stabilization and reduce unnecessary manipulation at the insertion site. BD identifies integrated extension tubing, a stabilization platform, a pinch clamp, and a passive safety needle-shielding mechanism within the Nexiva closed catheter system.

Key Features

• BD Nexiva™ Closed IV Catheter System
• Single-port configuration
• Catalog number: 383512
• 22G catheter
• 1-inch / 25mm catheter length
• BD Vialon™ catheter material
• Integrated extension tubing
• Built-in stabilization platform
• Pinch clamp
• Blood control feature
• Passive safety needle-shielding mechanism
• Blue color-coded hub
• ETO sterilization
• Sterile, single-use configuration
• Gravity flow rate: 33mL/min
• High-pressure rating: 300 psi
• 20 units per box
• 80 units per case

Integrated Closed IV Catheter Design

The BD Nexiva 22G x 1" combines the peripheral IV catheter with integrated extension components. This all-in-one configuration can help reduce the number of connections and manipulations required around the insertion site.

The built-in stabilization platform is designed to help reduce catheter movement and accidental dislodgement. The integrated extension tubing also helps keep connections away from the immediate insertion area.

The BD Vialon™ catheter material is a proprietary material used across the Nexiva portfolio. BD states that this material is designed to support longer catheter dwell and reduce mechanical phlebitis compared with conventional catheter materials.

Product Specifications
