IV Administration Sets:

IV Administration Set with Universal Spike and Spin-Lock ® Connector. B-Series Set


(15 drops/mL)
Length: 79" (201cm)
Priming volume: 14mL
NONPYROGENIC
not made with natural rubber latex
Contains DEHP

IV Administration Set with Universal Spike and Spin-Lock  Connector.

Compatible with VISTA basic Pump.

Ref: 352601
Product Code: V1501


(15 drops/mL)
Length: 85" (216cm)
Priming volume: 13mL
NONPYROGENIC
Not made with natural rubber latex or DEHP.

Universal Spike (15 drops/mL), Roller Clamp, Injection Site 6 in. above Distal End, SPIN-LOCK® Connector. DEHP-free, Latex-free. Priming Volume: 16 mL, Length: 83 in.
Product Specifications



Product Code
V1390


Manufacturer
B. Braun


Administration Method
Gravity


Application
Primary IV Administration Set


Back Check Valve
Without Back Check Valve


Connection Type
Spin-Lock® Connector


Drip Rate
15 Drops / mL Drip Rate


Filter Size
Without Filter


Flow Control Type
Roller Clamp


Number of Ports
1 Port


Port Type
Injection Port


Priming Volume
16 mL Priming Volume


Spike Type
Vented Spike, Drip Chamber


Sterility
Sterile


Tubing Length
83 Inch Tubing


Tubing Type
DEHP-Free Tubing


1 Case

50 Pcs

The B.Braun Non-Needle-Free IV Gravity Administration Set with 15 drops/ml has components that are not made from DEHP, latex, or natural rubber. This primary gravity IV set comes in a variety of lengths and dimensions to suit different applications and is intended to enhance patient care by supplying IV therapy solutions.

B. Braun Non-Needle-Free IV Gravity Administration Set Specifications

• The injection site is 28 inches and 6 inches above the distal end
• Flow Control Type: Roller Clamp
• Port Type: Injection Port
• Priming Volume: 18ml Priming Volume (approx)
• Tubing Length: 84 Inch Tubing
• Tubing Type: DEHP Tubing

Universal Spike (15 drops/mL), Integrated Free-flow Protector1/slide Clamp2, CARESITE Valve Injection 6 in. above Distal End, Roller Clamp, SPIN-LOCK® Connector. DEHP-free, Latex-free. Priming Volume: 20 mL, Length: 111 in. (282.0 cm)

Specifications

Universal Spike (15 drops/mL), Backcheck Valve, CARESITE® Valve Injection Sites 85 in., 41 in. and 6 in. above Distal End, Roller Clamp, Slide Clamp, SPIN-LOCK® Connector. DEHP-free, Latex-free. Priming Volume: 20.0 mL, Length: 112 in. (284 cm)

Specifications

Universal Spike, Roller Clamp, Slide Clamp, Injection Sites 82" & 6" Above Distal End, SPIN-LOCK Connector, 19mL Priming Volume, 106"L, 15 Drops/mL, Latex Free. Contains DEHP

Product Specifications

Product Code
V1423

Manufacturer
B. Braun

Administration Method
Gravity

Application
Primary IV Administration Set

Back Check Valve
Without Back Check Valve

Connection Type
Spin-Lock® Connector

Drip Rate
15 Drops / mL Drip Rate

Filter Size
Without Filter

Flow Control Type
Roller Clamp, Slide Clamp

Number of Injection Ports
2 Ports

Priming Volume
19 mL Priming Volume


Spike Type
Universal Spike, Drip Chamber


Sterility
Sterile Fluid Path


Tubing Length
106 Inch Tubing


Tubing Type
DEHP Tubing


1 Case
50 pcs





Universal Spike (15 drops/mL), Backcheck Valve, CARESITE® Valve Injection Sites 68 in. and 6 in. above Distal End, Roller Clamp, SPIN-LOCK® Connector. DEHP-free, Latex-free. Priming Volume: 15.0 mL, Length: 84 in. (210 cm)

Specifications

Primary Gravity IV Set with 3 CARESITE® Injection Sites

Universal Spike (60 drops/mL), Backcheck Valve, CARESITE® Valve Injection Sites 61 in., 26 in. and 6 in. above Distal End, Roller Clamp, Slide Clamp, SPIN-LOCK® Connector. DEHP-free, Latex-free. Priming Volume: 17.0 mL, Length: 88 in. (223.5 cm)

Specifications

• 48 Each/Case
• SKU- 12662-28

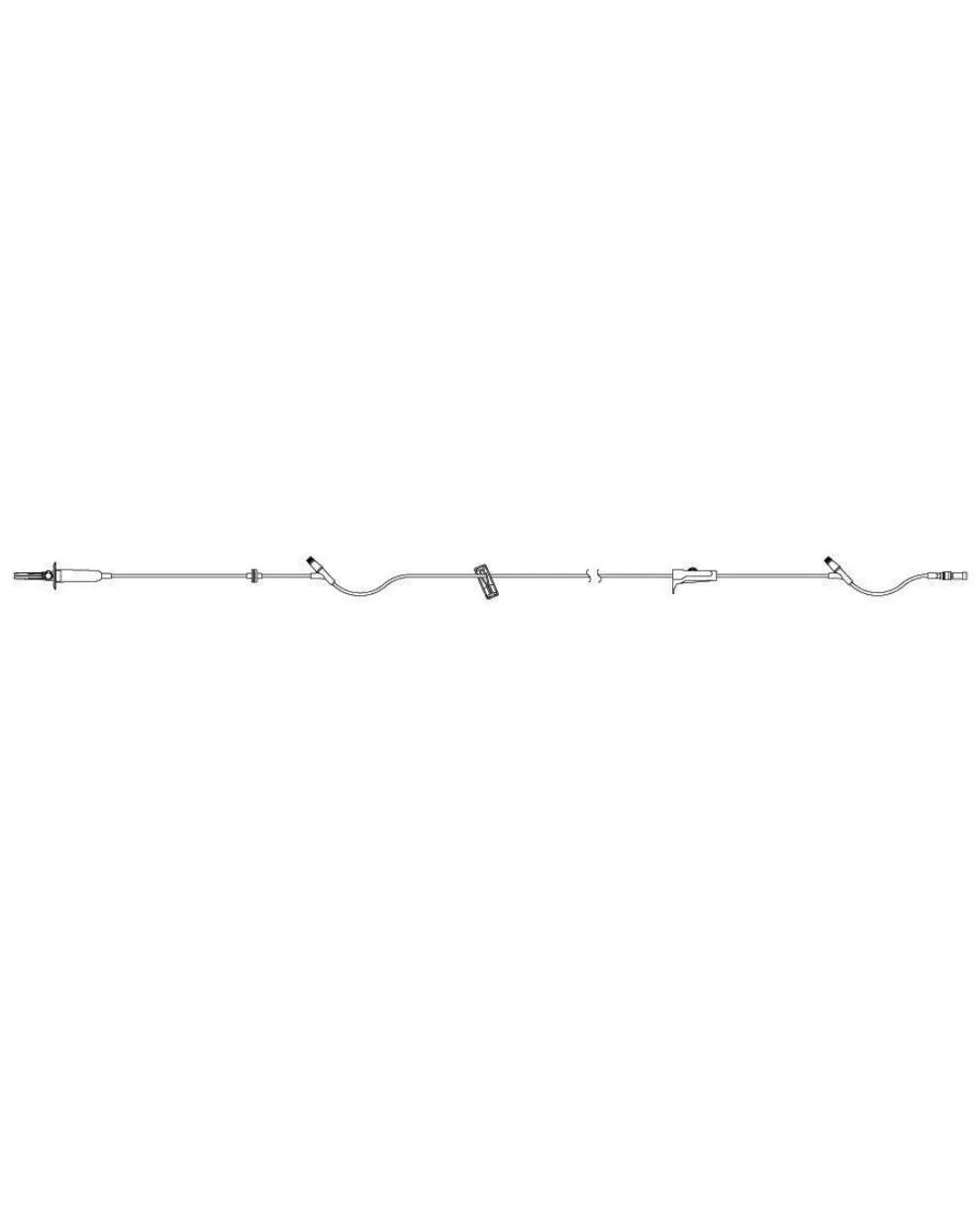

Universal Spike (15 drops/mL), Slide Clamp, Backcheck Valve, CARESITE® Valve Injection Sites 87 in. and 12 in. above Distal End, Roller Clamp, SPIN-LOCK® Connector. DEHP-free, Latex-free. Priming Volume: 20 mL, Length: 104 in. (264 cm)

Specifications
